Solar Trackers vs Fixed Tilt Systems: The Superior Energy Generation Choice

Solar tracking technology has emerged as a game-changing solution for maximizing energy generation in solar photovoltaic installations, with compelling real-world evidence demonstrating significant performance advantages over traditional fixed-tilt systems.

Performance Advantages: Real-World Results

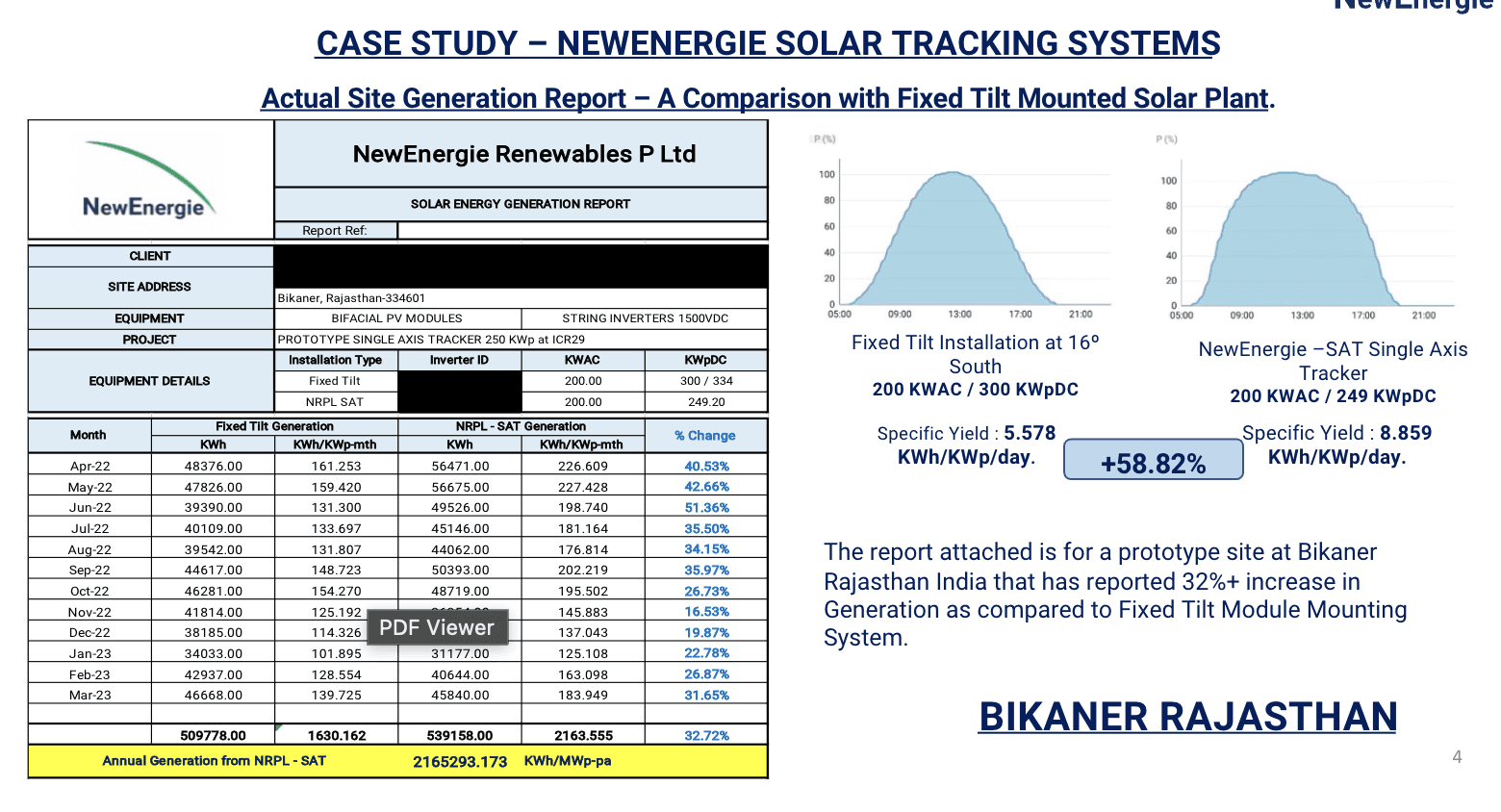

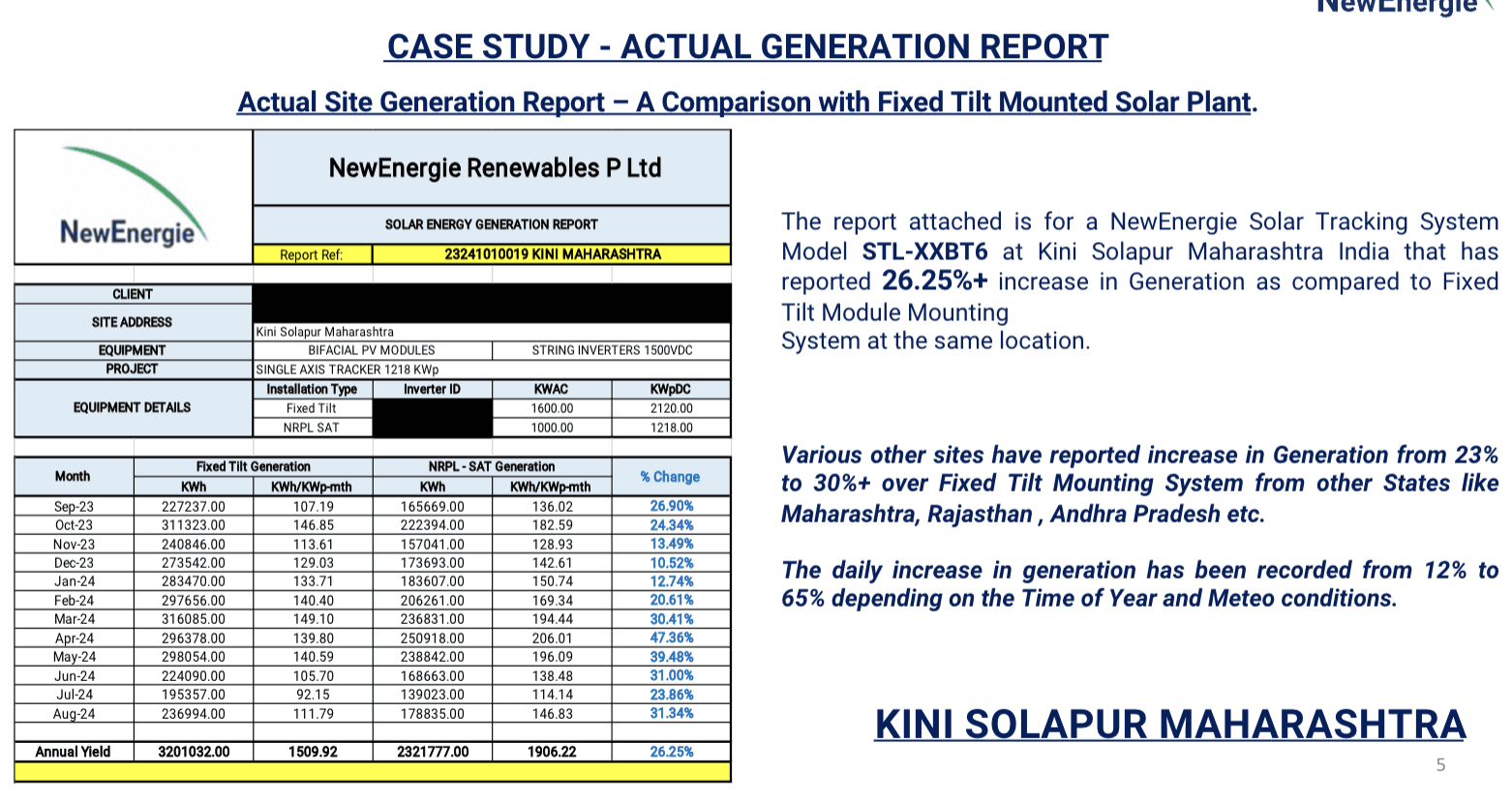

Advanced solar tracking systems have demonstrated exceptional performance improvements in actual field conditions across multiple Indian sites. Single-axis tracking systems have reported 32% higher generation at sites in Rajasthan and 26% higher generation at installations in other regions compared to conventional fixed-tilt installations.

These impressive results align with broader industry findings, where single-axis tracking systems typically achieve 15-20% more efficiency than fixed-tilt systems, with some studies reporting gains of up to 29% in optimal conditions. The enhanced performance stems from the tracker's ability to follow the sun's path throughout the day, maximizing direct sunlight exposure and significantly increasing daily energy yield.

Technical Superiority and Innovation

Advanced Tracking Technology

Modern tracking solutions incorporate several innovative features that contribute to their superior performance:

• Pendulum-type hanging torque tube with single-point drive system

• Reduced moving parts ensuring long-term reliability

• Tilted module design for improved energy yield and thermal efficiency

• Advanced corrosion-resistant coating rated for highly corrosive environments




Energy Yield Optimization

Case study data reveals specific yield improvements where single-axis trackers achieved 8.859 KWh/KWp/day compared to 5.578 KWh/KWp/day for fixed tilt installations, representing a 58.82% improvement in specific yield.

Economic Benefits and Cost Effectiveness

Levelized Cost of Energy (LCOE) Advantages

Independent analysis has validated the economic superiority of tracking solutions, demonstrating up to 9% lower LCOE compared to fixed-tilt systems across different project locations in India. This cost advantage results from:

• Higher energy generation offsetting initial investment costs

• Improved land utilization efficiency

• Reduced number of panels required for equivalent output

• Enhanced grid support throughout daylight hours




Long-term Financial Returns

While solar trackers require higher initial capital investment, the substantially increased energy generation typically results in favorable return on investment within 3-5 years, with continued benefits throughout the system's 25+ year lifespan.

Optimal Applications and Site Conditions

Geographic Advantages

Solar trackers perform exceptionally well in regions with high direct normal irradiance (DNI), making them particularly suitable for Indian solar installations where abundant sunshine maximizes the tracking benefit.

Project Scale Considerations

Single-axis trackers are most cost-effective for utility-scale installations where the economies of scale justify the additional complexity and maintenance requirements. Large solar parks can leverage centralized tracking systems to move entire rows of panels, optimizing both performance and maintenance efficiency.

Environmental Impact and Sustainability

Solar tracking systems contribute significantly to carbon footprint reduction by maximizing renewable energy generation from the same land area. The increased energy yield per installed capacity means fewer installations are needed to achieve the same power generation targets, reducing overall environmental impact while maximizing clean energy production.

Market Growth and Future Outlook

The global single-axis solar tracker market is experiencing robust growth, valued at USD 31.4 billion in 2024 and projected to reach USD 66.8 billion by 2035, reflecting a CAGR of 7.1%. This growth is driven by increasing recognition of tracker technology's superior performance and economic benefits.

Solar tracking technology represents a proven, bankable solution for maximizing solar energy generation, with advanced systems demonstrating industry-leading performance improvements of 26-32% over fixed-tilt installations. The combination of superior energy yield, favorable economics, and robust engineering makes solar trackers the optimal choice for utility-scale solar developments seeking to maximize return on investment while advancing renewable energy goals.
